MSE MotoSafe

MOTOR INSULATION DETECTOR

The Electrical Code only mandates motor protection against overloads or short circuit while the motor is running ,to minimize the risk of fire. MotoSafe guards your motor against adverse conditions when it is not running.

FEATURES

Compact state-of -the-art circuitry
Megger transient PLC remotemonitoring capability
Highspeed isolation relay
Proof
Signal display lamp
Safe operating voltage
Quick function test
High reliability
Guaranteed Performance
Ease of Installation

APPLICATION

"Continuous Process"motors performing intermittemt operations.
"Service" motors, eg. air compressors hydraulic pumps, motor-operated valves , HVAC.
Meterials-handling machinery , eg. overhead cranes, conveyers.
In fact, any motor critical to smooth and efficient production, in damp, dusty, or corrosive environments
When the motor is in its idle state, the MOTORSAFE device injects 12 VDC into the voltless motor coils.

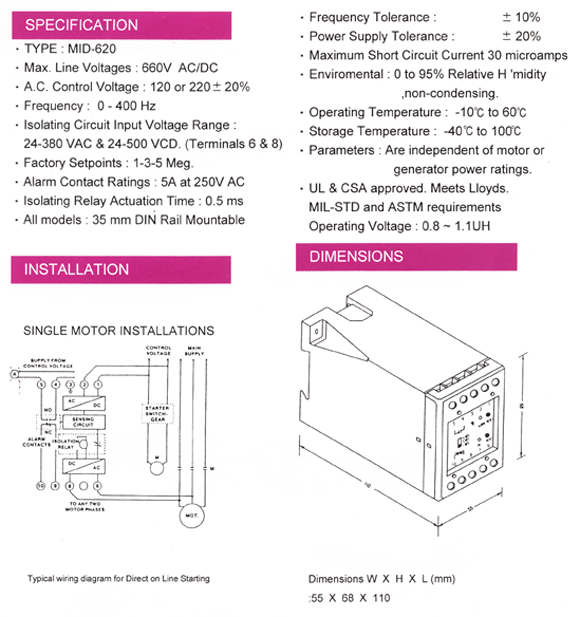

mse2
